د.إ1,581,000

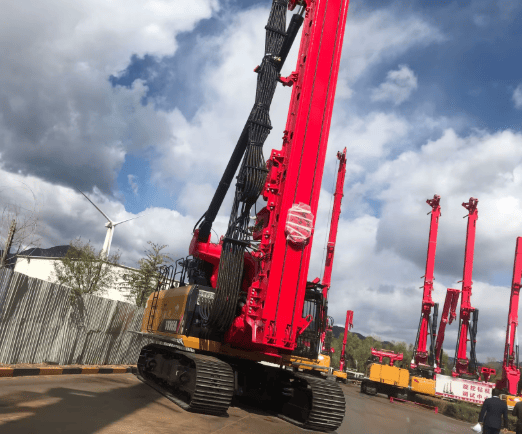

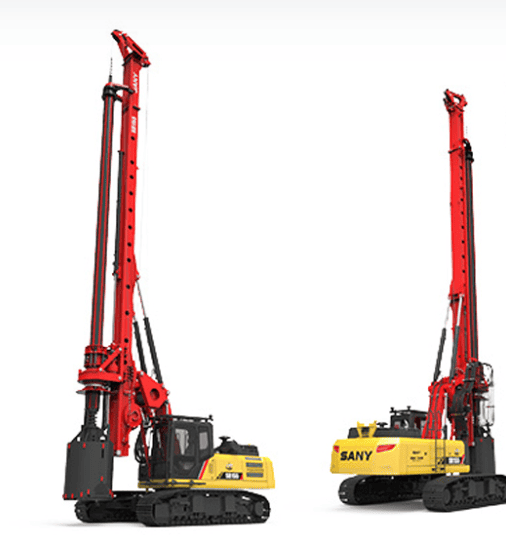

The SANY SR155-C10 Rotary Drilling Rig is engineered to deliver efficiency in deep foundation tasks. With its powerful rotary drive and smooth hydraulic performance, it achieves excellent drilling depth. Smart control technology helps optimize fuel and energy use. Rugged construction ensures high durability and minimal downtime.
Parameters-
- Base Engine: Mitsubishi D06FRC-TAA
- Engine Power: 147/2100kW/rpm
- Emission Regulation: China Stage Ⅲ
- Rated Speed: 5~35rpm
- Rated Output Torque: 155kN·m
- Max. Pile Diameter: 1500mm
- Max. Pile Depth: 55/44m
- Crowd Force: 155kN
- Stroke: 4200mm
- Line Pull: 160kN
- Overall Height: 18600mm
- Operating Weight: 48T
- Transport Width: 3100mm
- Transport Height: 3265mm
- Lifting Capacity: 160kN
- Max. Line Speed: 80m/min
- Rope Diameter: 26mm
Features:
- Efficient and Flexible: They are widely used in civil engineering in small dia. and deep borehole construction, high main hoist lifting up and down speed, tall verticality of the finished boreholes, and high working efficiency in civil construction.
- Special Chassis: Telescopic large widening chassis designed for rotary drilling rig, roller type large diameter slewing bearing to guarantee the high stability in deep borehole construction.
- Economical and Energy-saving: Imported large-displacement EFI engine with solid power, adopts power optimization control technology, adjusts power distribution in real time, fast response speed, higher fuel efficiency, and more energy-saving.
- High Reliability: The mast adopts a box structure with solid resistance to torsion and fatigue; the sixth-generation Kelly bar adopts upgraded material and strengthened block ring; the overall strength increased by 25% with high drilling ability in the strongly weathered rock layer.
- Intelligent Upgrade: 10-inch HD touch screen, fast response, and more convenient operation.
